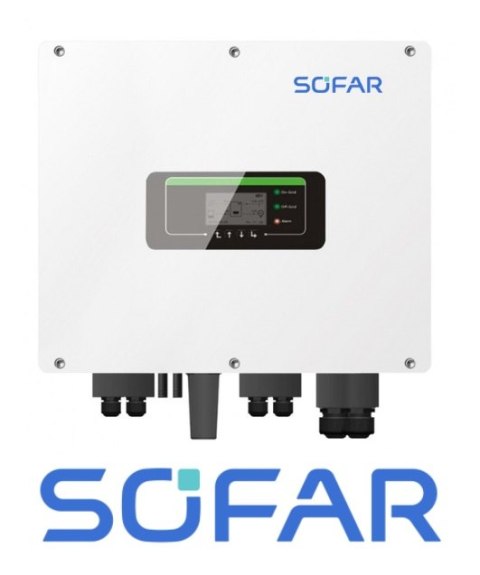

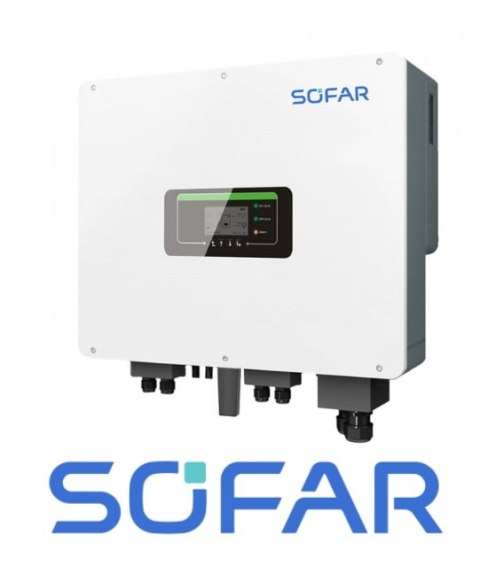

• SOFAR Hybrid inverter HYD15KTL-3PH 3-phase 2xMPPT

10944.17
10944.17
opak Add to wishlist
Shipping within 48 hours
Shipping price 350
Pickup in person 0
Euro pallet 350
The Availability Of 15 opak

Order by phone: +48 720829292

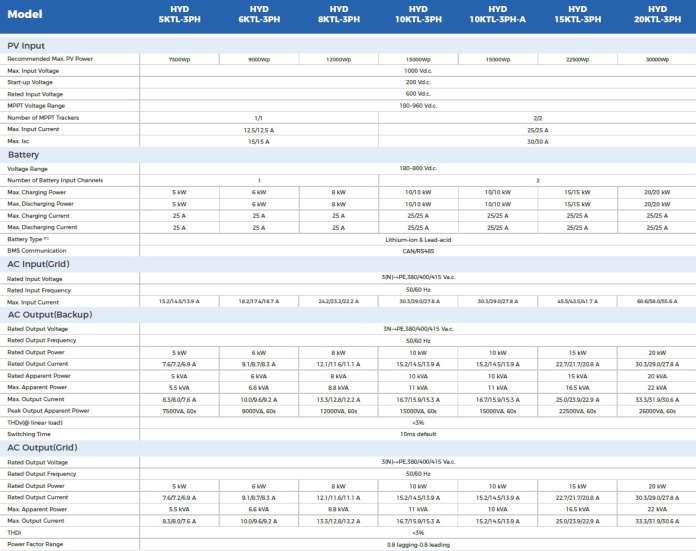

Product specification:

  • Recommended PV input power: 22,500 Wp (11.250Wp / 11.250Wp)
  • DC inrush voltage: 200V
  • Maximum input current at MPPT: 25A / 25A
  • Nominal power: 15,000 W
  • Maximum AC power: 16,500 VA
  • Tightness class: IP65
  • Standard manufacturer's warranty: 5 years


Sofar HYD -3PH has the option of choosing the operating mode:

  • Auto Mode automatic mode - in automatic mode, the inverter automatically charges and discharges the battery depending on the amount of energy produced in relation to its consumption.
  • Time-of-use mode - electricity is more expensive during high demand (peak rate) and much cheaper during low demand (except peak rate). You can set up time-of-use rules. Maximum 4 rules are supported (0/1/2/3 rule). You can also select an off-peak period to charge the battery.
  • Timing mode - in this mode you can manually set the charging time / power and discharge time / battery power.
  • Passive mode - after connecting the inverter to the network, you can remotely control the functions of the inverter using commands

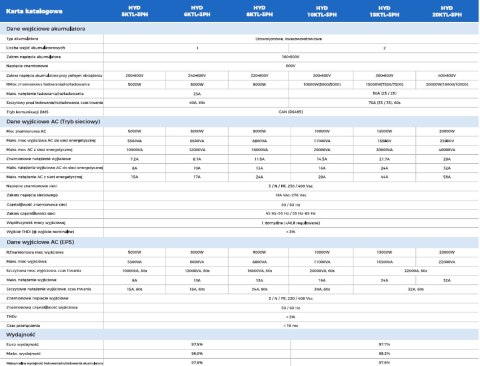

Datasheet
Declaration of the NC RfG EN certification body in accordance with Commission Regulation (EU) 2016/1
Declaration of conformity PN-EN ISO/ IEC 17050-1 dated 1.06.2021
Installation and operating instructions
SolarMAN User Manual
Compatibility
Warranty terms and conditions
Complaint procedure
The most common errors and their solutions in SOFARSOLAR inverters
