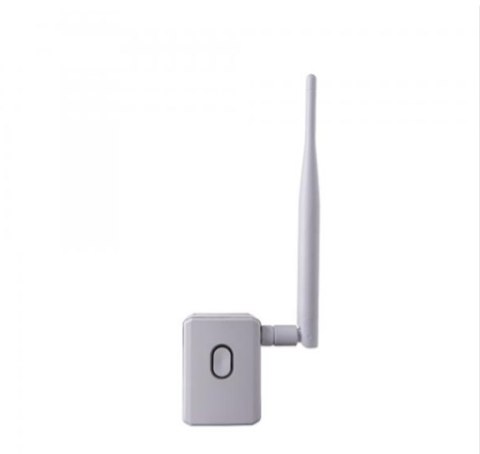

• Solaredge WFGW-B-S1-RW WiFi Gateway

273.08
273.08
opak Add to wishlist
Shipping within 48 hours
Shipping price 30
Pickup in person 0
DPD 30
DPD 30
The Availability Of 15 opak

Order by phone: +48 720829292

Solaredge WFGW-B-S1-RW WiFi Gateway

Features a simple wireless connection between SetApp-enabled SolarEdge inverters and an internet router.
Via SetApp using the wireless station built into the inverter, installation and configuration is easy.
The antenna is located outside the inverter and supports up to two amplifiers to increase range.

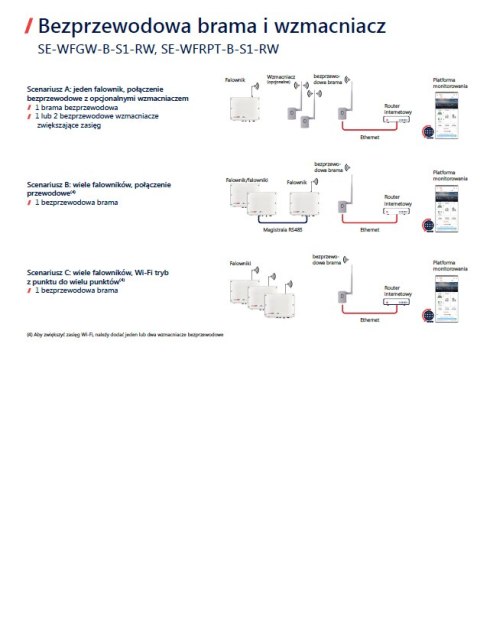

The wireless gateway supports up to eight SolarEdge inverters within a single wireless network.

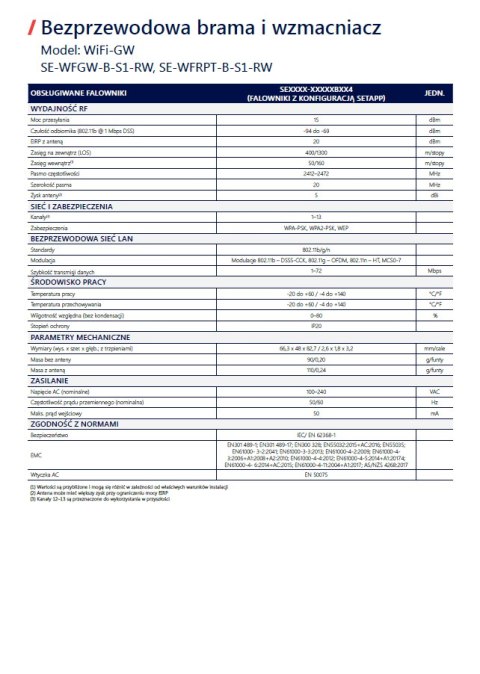

Technical specifications:

Transmission power 15 dBm
Outdoor range: 400m
Indoor range: 50m
Frequency band: 2412/2472 mHz
Channels: 1-13
Operating temperature: -20 to +60
Storage temperature: -20 to +60
Relative humidity (non-condensing): 0-80%
Degree of protection: IP20
Dimensions: 66.3 x 48 x 82.7 mm
Weight without antenna: 90g
Weight with antenna: 110g
AC voltage: 100-240 VAC
Maximum input current: 50 mA
