SOFAR PowerAll Inwerter hybrydowy ESI 4.6K-S1 1F 2xMPPT

SOFAR Hybrid inverter ESI 4.6K-S1

A single-phase inverter with 2 MPPT from SofarSolar. It is compatible with high-current photovoltaic panels. It has modular and integrated DC-coupled energy storage, and the flexible battery capacity (1 to 6 BTS 5K battery modules and the 1-phase hybrid inverter ESI 3...6K-S1) enabling configurations of up to 36 kW and 180 kWh. With the push of a button, battery operation is possible, which is user-friendly. The Sofar ESI ESI series S1 hybrid inverter is a device that, together with the Sofar BTS 5K battery pack, forms a modern, safe and highly efficient PowerAll electricity storage system. The SofarSolar high-voltage battery system consists of 1 to 6 BTS 5K battery modules and a 1-phase ESI 3...6K-S1 hybrid inverter. Up to six units can be connected in parallel, enabling configurations of up to 36 kW and 180 kWh.It features extremely low self-consumption of the battery in sleep mode, with a switchover time to critical loads of less than 10ms. Maximum efficiency is 97.7 %.The Sofar ESI S1series hybrid inverter is a unit that, together with the Sofar BTS 5K battery pack, creates a modern, safe and highly efficient PowerAll electricity storage system.

Specifications:

• Power [W]:3000-6000
• Max. voltage [V]:550
• Min. Voltage MPPT [V]:85
• Max. MPPT voltage [V]:520
• Initial supply voltage [V]:360
• Max. current [A]:16
• Number of MPPT inputs:2
• Max. short-circuit current per MPPT [A]:22.5
• Supply phases:1
• Max. output current [A]:20
• Battery scalability:up to 6 units
• Euro efficiency [%]:97
• Max. efficiency [%]:97.7
• Dimensions [mm]:708 x 410 x 170
• Weight [kg]:22.5
• Communication type:Bluetooth, CAN, Ethernet optional, LTE 4G optional, RS485, WiFi

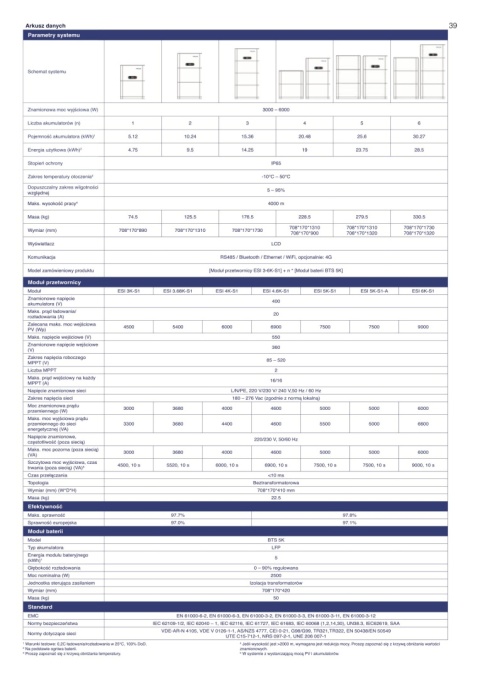

Datasheet

Terms of warranty

User Manual

Declaration of conformity

Certificate EN 50549

Certificate EN IEC 61000

Certificate IEC EN 62109

Certificate TUV IEC 62109-1:2010
