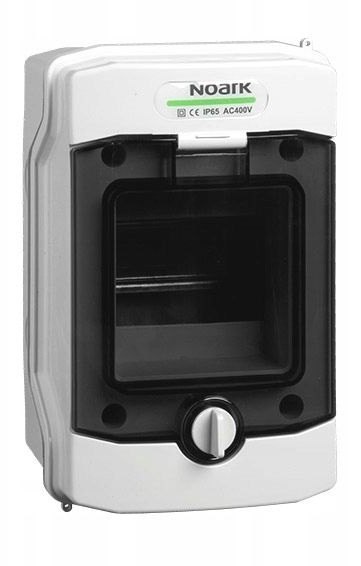

• NOARK plastic N/T hermetic switchboard 1x4M PHS IP65 4T 1000V (101492)

52.85
52.85
opak Add to wishlist
Shipping within 48 hours
Shipping price 30
Pickup in person 0
DPD 30
DPD 30
The Availability Of 3 opak

Order by phone: +48 720829292

Common characteristics of the series:
The installation enclosures are designed for general applications, including industrial applications with a high IP rating required. Their design is suitable for surface mounting. Delivery consists of enclosure, door, TH-35 rails, N+PE terminals, front cover with cut-outs for apparatus, blanking plug, mounting elements.
Common features of the series:
  • PHS surface-mounted installation enclosures
  • Rated voltage 690 V AC, 1000 V DC
  • Degree of protection IP65
  • 4 to 36 modules
  • 1 to 3 rows
  • Transparent door
  • Knob locking, patent lock can be installed
  • Product specifications
  • Manufacturer: NOARK
  • Product colour: Light grey
  • Commercial designation: 101492
  • Type: surface-mounted waterproof switchgear
  • Number of rows: 1
  • TH35 (DIN) rail: 1x4
  • PE/N terminals: yes
  • Door type: transparent tinted
  • Number of doors: 1
  • Locking type: plastic lock
  • Sealable: yes
  • Dimensions: 128 (B) × 201 (A) × 120 (C) mm; 78 (E) × 111 (F) mm
  • Material type: Acrylonitrile/styrene/acrylate (ASA) halogen-free
  • Number of 18mm modules: 4
  • Rated current In: 63 A
  • Rated insulation voltage Ui: 690V AC / 1000V DC
  • Protection class: II
  • Degree of protection: IP65
  • Impact resistance: IK08
  • UV resistance: yes
  • Operating temperature: -25°C ÷ +60°C
