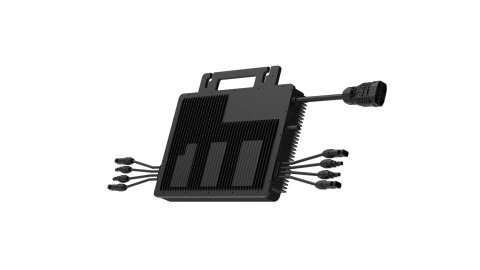

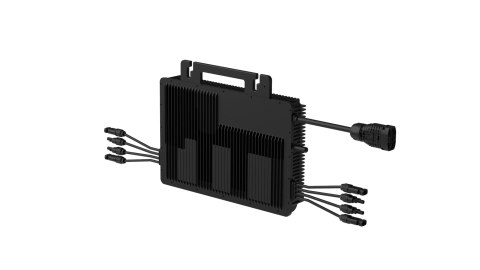

HOYMILES Mikroinwerter MIT-5000-8T 3F (8*750W)

MIT-5000-8T

Hoymiles' new generation MIT series micro inverters are designed to accommodate eight high-power PV modules, with an output power of up to 5000VA and input current of up to 20A.

• Three-phase output, ideal for commercial and industrial applications
• Output power of up to 5000VA and input current of up to 20A, compatible with 182mm/210mm PV modules
• Four MPPTs to optimize energy generation
• Low input voltage ensures safer rooftop installations by minimizing the risk of arc flash and electric shock
• 8-in-1 design for quick installation with HMT cable system, reducing costs
• Sub-1G wireless solution for stable communication and convenient O&M

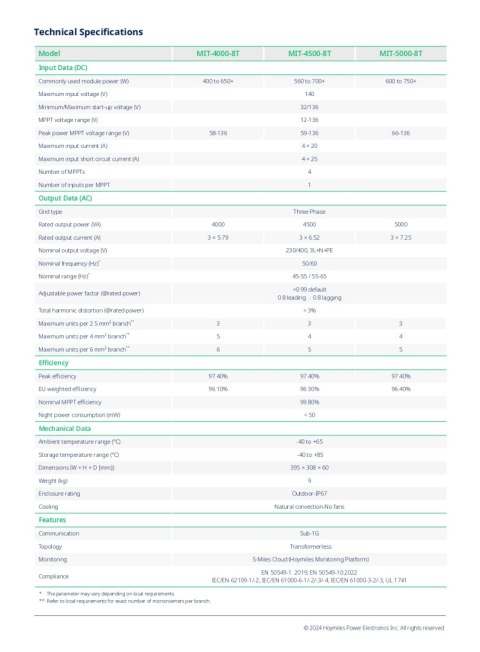

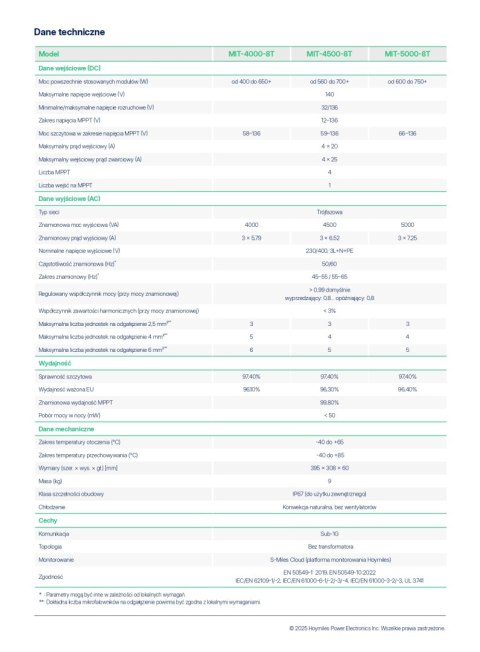

Technical data:

Dimensions: 395 × 308 × 60 mm
Maximum input voltage: 140V
Rated output power: 5000VA
Network type: Three-phase
Most commonly used module power: 600 W to 750 W+
MPPT voltage range: 12 V–136 V
Maximum input current: 4 × 20A
Number of MPPTs: 4

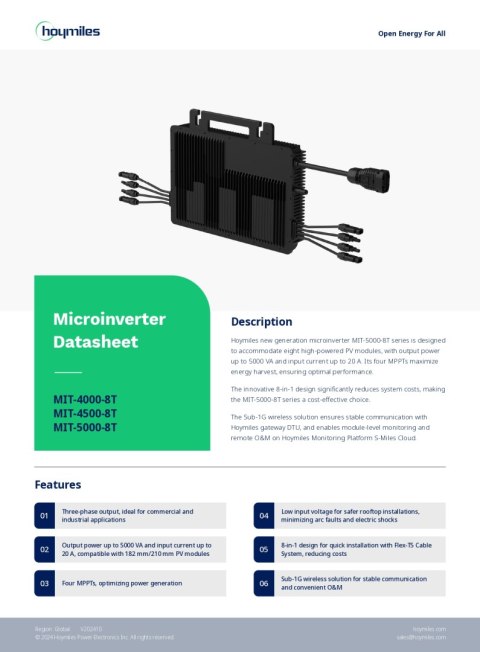

DATASHEET

Quick Installation Guide

Attestation of conformity IEC 62109

Declaration of Conformity
