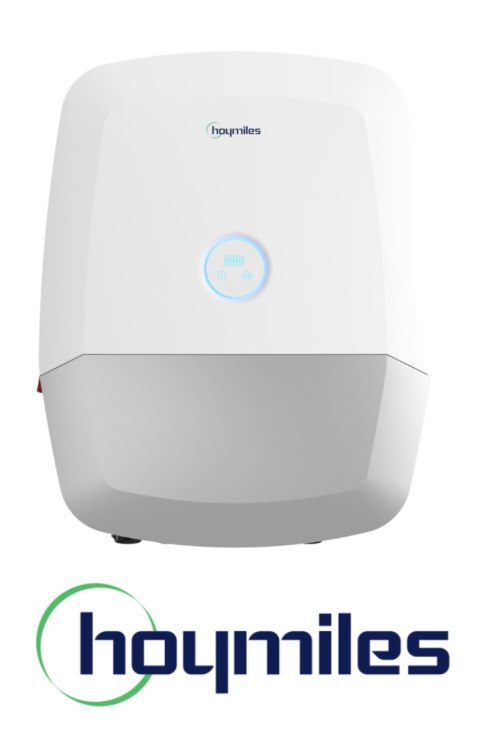

HOYMILES HIT-10L-G3 (3-phase) Hybrid Inverter (Low Voltage)

HOYMILES Hybrid Inverter HIT-(5-20)L-G3 (3-phase) (Low Voltage)

The HIT-(5-20)L-G3 series are high-performance, three-phase hybrid inverters with the highest reliability in power classes from 5 to 20 kW.

The intelligent EMS function supports self-consumption, economy, emergency, peak shaving and discount tariff modes in multi-scenario applications.

Monitoring management via S-Miles Cloud allows users to remotely diagnose and track the performance of individual systems over time, offering the highest quality of energy production.

-4 MPPT with 20A input; DC/AC oversizing up to 200%
- 100% unbalanced output load; max. output load of each phase is up to 50% of rated power
- Supports multiple intelligent operating modes, including peak shaving and time tariffs
- Integrated AI energy management with generator, heat pump and intelligent load
- Parallel connection of up to 10 inverters for grid-connected and off-grid system expansion
- Ultra-lightweight design for easy installation and space saving; unique built-in meter solution with bypass up to 50 A

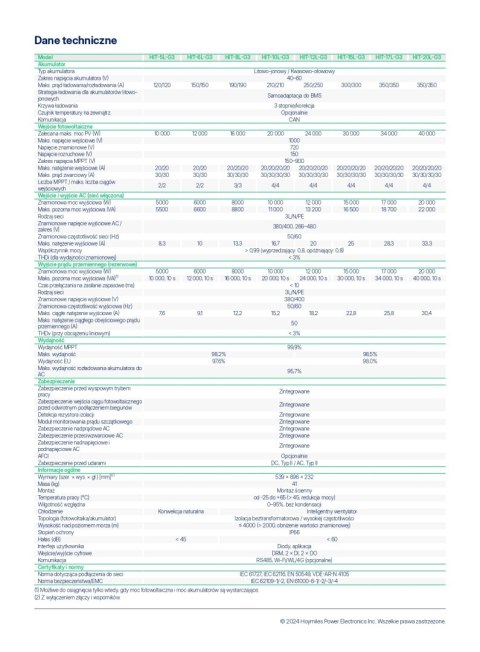

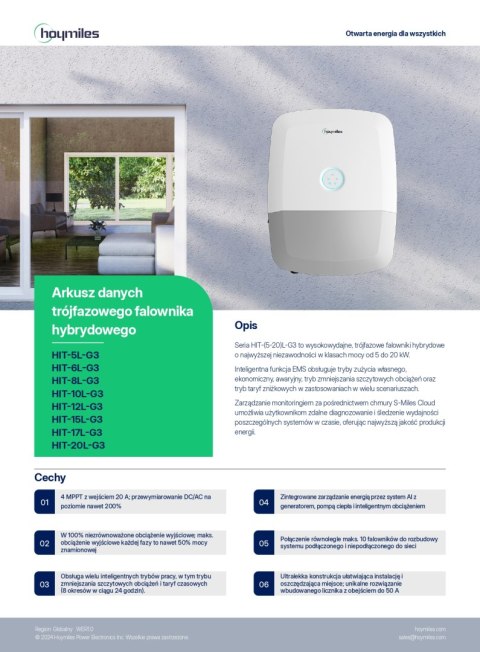

Datasheet
