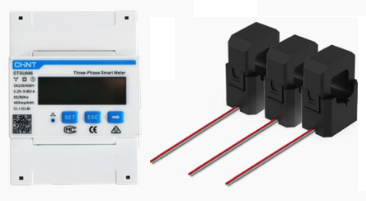

HOYMILES DTSU 666 meter with CT 3 X 250A transformers (3-phase)

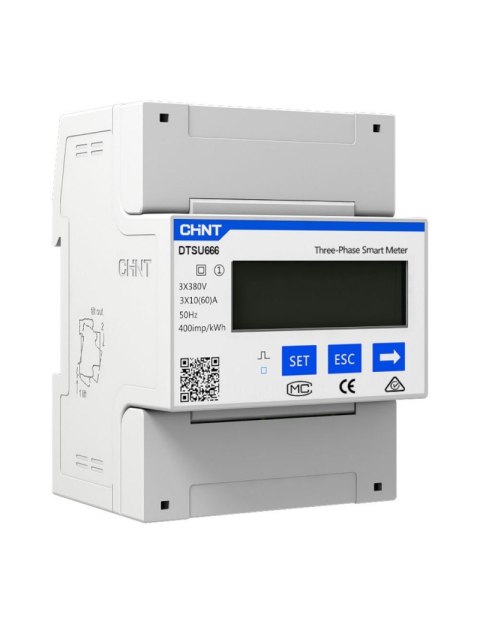

The Hoymiles DTSU666 (CT-3 250A) electricity meter has an external current transformer and can be used to measure and display photovoltaic power, load consumption or exported power.

Hoymiles Smart Power Export Management

Hoymiles Smart Power Export Management is a smart and reliable solution for managing the amount of electricity exported to the grid. The management consists of a meter (optional CT), Hoymiles Gateaway DTU-Pro (or DTU-Pro-S) and Hoymiles microinverter. The Hoymiles electricity meter transmits energy export or consumption values. To accurately display PV production, the meter must be installed at the output of the PV system.

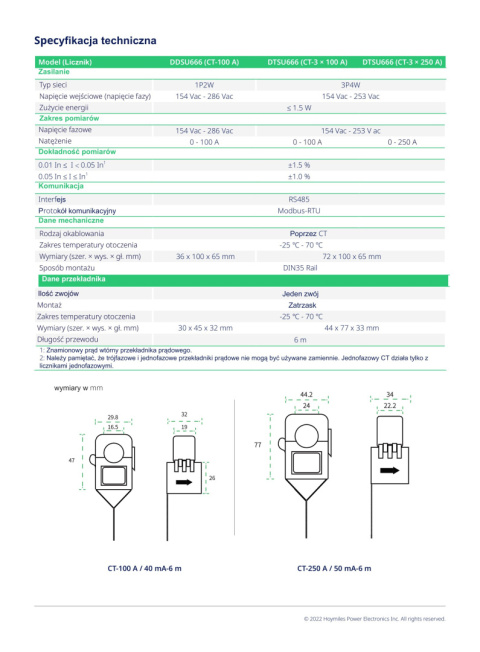

Technical data:

  • Input voltage: 154-253 V AC
  • Dimensions: 72 x 100 x 65 mm
  • Dimensions CT data: 44 x 77 x 33 mm
  • Ambient temperature: -25°C to 70°C
  • Connection: RS485
  • Cable length: 6 m
