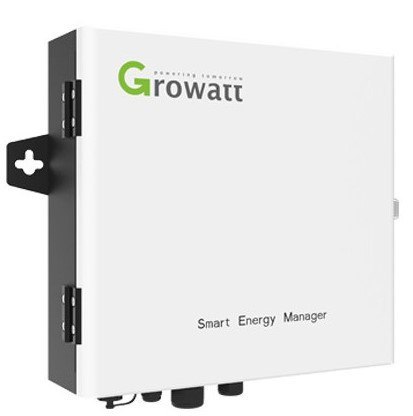

SMART ENERGY MANAGER

The Smart Energy Manager is designed to monitor self-consumption and reduce export of commercial photovoltaic and energy storage systems. It can also provide flexible current transformers for different system sizes with high control accuracy. It has a fail-safe function to ensure system safety and reliability. Manage multiple solar and storage inverters. Online monitoring and export limitation for the entire system, flexible current transformers for different project sizes, RS485 and Ethernet connection.

Intelligent management:
- Export restriction and 24/7 self-consumption monitoring
- Online monitoring and operation support

Easy installation:
- Integrated system with ShineMaster and meter
- Simplify cabling of the C&I system

Flexibility and reliability:
- Flexible CT for different project sizes
- Fault tolerance and high control accuracy
- Can operate with 380 V and 480 V three-phase mains

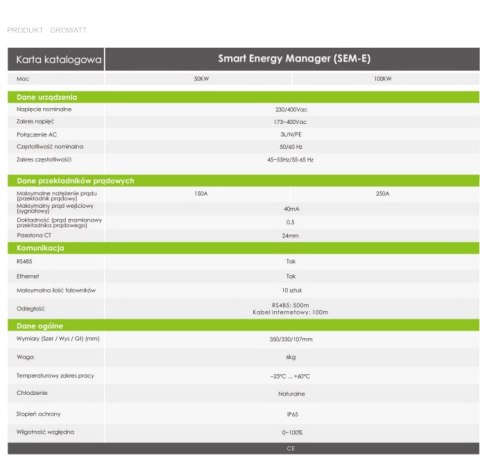

Basic specifications of the GROWATT Smart Energy Manager E 100-300kW:
-Rating voltage [V]: 230/400Vac
-Voltage range (LL): 173~400Vac
-Max. output current [A]: 250
-Dimensions (W/H/D) [mm] : 350/330/107
-Weight: 6kg
-Protection level: IP65
-Operating temperature range: -25°C ... +60°C
-Cooling: Natural cooling
-Relative humidity: 0 ~ 100%.

Appendix 1
