FelicityESS Inwerter hybrydowy All in one Apollo-5KLP1G01-MX 1-fazowy

The Apollo series universal ESS system combines an inverter and battery in a compact package. This innovative energy storage system is designed to provide reliable, efficient and sustainable power for your home or business.

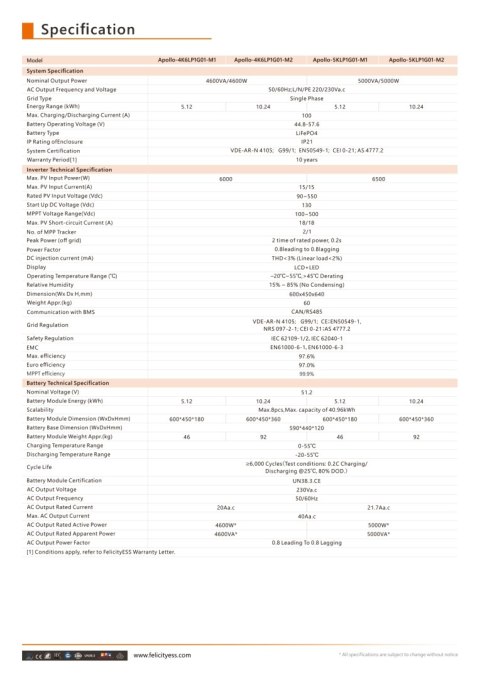

System specifications
Rated output power 5000 W
AC output frequency and voltage 50/60 Hz; L/N/PE 220/230 Va.c
Single-phase type
Energy range (kWh) 5.12
Maximum charge/discharge current (A) 100
Battery operating voltage (V) 44.8-56.7
Battery type LiFePO4
Case IP degree of protection IP65
Warranty period 10 years

Technical specifications inverter
Maximum PV input power (W) 6500
Maximum PV input current (A) 15-15
Rated PV input voltage (Vdc) 90-550
Starting - DC voltage (Vdc) 130
MPPT voltage range (Vdc) 100-500
Maximum PV short-circuit current (A) 18-18
Number of MPP Tracker 2-1
Power factor 0.8 leading to 0.8 lagging
DC current (mA) THD < 3% (linear load < 2%)
LCD+LED display
Operating temperature range (?) -20?~55?,>45? Derating
Weight approx. (kg) 60
Communication with BMS CAN/RS485
Dimensions (W x D x H, mm) 600x450x640
