• ELEKTROMET Surface-mounted fire protection button (921400)

115.50
115.50
opak Add to wishlist
Shipping within 48 hours
Shipping price 30
Pickup in person 0
DPD 30
DPD 30
The Availability Of 5 opak

Order by phone: +48 720829292

ELEKTROMET Surface-mounted fire fighting pushbutton (921400).

Commercial designation


WP-1s

Rated operating current Ie


10 A (230 V~), 12 A (400 V~)

Rated switching voltage Ue


230/400 V~

Rated insulation voltage Ui


690 V~

Max. cross-section of connecting wires


2.5 mm²

Degree of protection


IP65

Dimensions (W × H × D)


115 ×115 × 62 mm

Certifications


CE, CNBOP-PIB, RoHS

Standards


Low-voltage directive 2006/95/EC, CPD directive 89/106, PN-EN 54-11

Warranty


24 months

Additional information


No installation screws and glands included.


ROP fire warning device designed for surface-mounted installation outside or inside industrial facilities and public use. The power wires are attached to the device flush (the oscillations in the rear wall) or surface-mounted (the weaknesses on the upper and lower side wall - under the glands or tubes).  The version is offered in type A: in an alarm situation it only requires breaking the glass, which releases the pushbutton. The alarm condition is cancelled by replacing the fragile element (glass). Annual tests are performed by removing the front part of the housing (without tools) and unscrewing the screws holding the glass. The alarm should turn on. Product of the Polish company Elektromet.



Downloadable files:

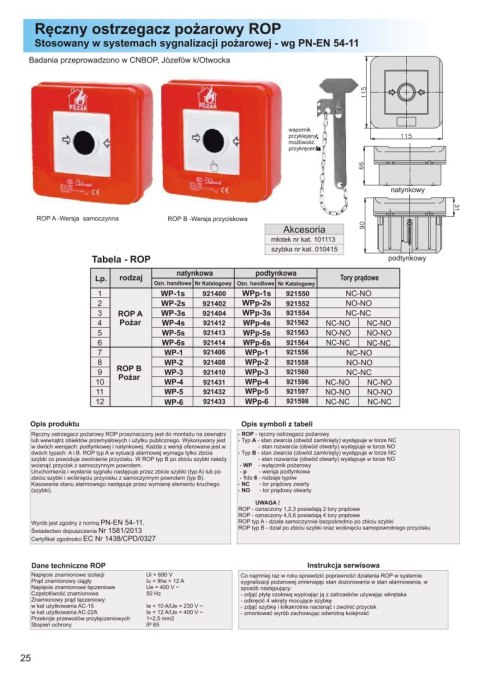

Karta katalogowa PL
Certyfikat
