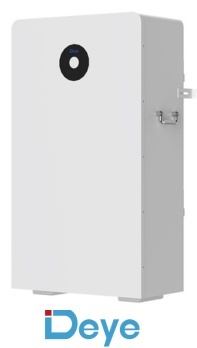

Deye RW-F16 51.2V 314Ah 16kWh Battery (low voltage)

Introducing the Deye RW-F16, an advanced residential energy storage solution designed to provide reliable, safe, and efficient power backup for your home. Featuring cutting-edge LiFePO4 battery technology, the RW-F16 is built to deliver sustainable energy solutions while ensuring maximum performance and user convenience.

Key Features:

• Maximum Output Power: 8 kW with the ability to connect up to 32 units in parallel, providing scalability up to 512 kWh, perfect for larger energy needs.
• Battery Chemistry: Employing Lithium Iron Phosphate (LiFePO4) technology, known for its safety and longevity, with over 6000 cycles at 90% Depth of Discharge (DoD).
• Robust Built-in Protection: Equipped with a built-in circuit breaker for added safety during charging (160A) and discharging (160A).
• Versatile Operating Conditions: Charge from 0? to 55? and discharge in extreme conditions from -20? to 55?, ensuring efficiency in varying climates.
• Remote Monitoring and Firmware Upgrade: Supports remote management and firmware upgrades via Deye inverter, allowing for effortless monitoring and maintenance.
• Flexible Installation Options: Wall and floor-mounted configurations fit seamlessly into residential settings.

Specifications:

• Model: RW-F16
• Nominal Voltage: 60 Vdc
• Capacity: 125 Ah (usable energy 14.4 kWh @ 90% DoD)
• Energy Efficiency: 90% round-trip efficiency with a cycle life of ≥6000 at 25?.
• Physical Dimensions: 480 mm (W) x 830 mm (H) x 235 mm (D)
• Weight: Approximately 122 kg
• Environmental Ratings: IP20 rating for indoor use with a temperature range of -20? to 55?.
• Humidity and Altitude: Humidity tolerance up to 95% and operates effectively below 2000 m altitude.
