Deye Bateria RW-F10.2 51,2V 200Ah 10,2 kWh (niskonapięciowy)

The RW-F10.2 Lithium Iron Phosphate (LFP) battery is a safer, more efficient and environmentally friendly energy storage solution for residential and commercial applications. This state-of-the-art battery is designed to maximize energy independence and support the transition to clean, renewable energy.

Description

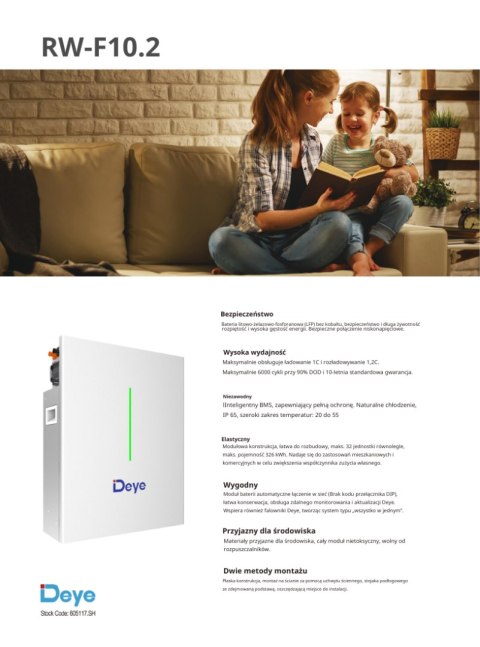

Key Features and Benefits:

1.Enhanced Safety: Our cobalt-free LFP chemistry provides a safer, longer-lasting, high-energy-density battery. The secure low-voltage connector further enhances overall system safety.

2.Exceptional Performance: Supporting a maximum charge rate of 1C and discharge of 1.2C, this battery delivers exceptional performance. It boasts an impressive 6,000 cycles at 90% DOD and is covered by a 10-year standard warranty.

3.Built-in Protection: The integrated intelligent Battery Management System (BMS) provides comprehensive battery protection. Natural cooling design, IP65 protection and wide operating temperature range from -20°C to 55°C ensure reliable operation in various conditions.

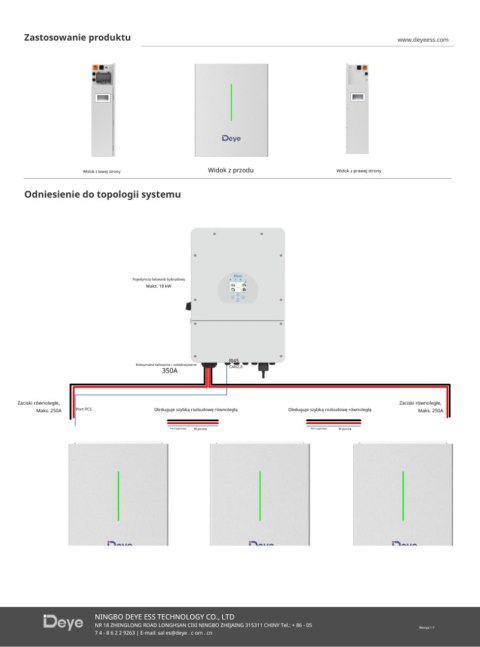

4.Modular and Expandable: Modular design allows easy expansion by up to 32 units connected in parallel, providing a capacity of up to 326 kWh. This flexibility makes it ideal for both residential and commercial applications, enabling increased self-consumption rates.

5.User-friendly: Battery modules feature auto-networking, eliminating the need for DIP switch coding. Easy maintenance, remote monitoring and upgrades are supported via the Deye platform. The battery also integrates seamlessly with Deye inverters to form a comprehensive stacked system.

6.Eco-friendly: We use eco-friendly materials to ensure the entire module is non-toxic and pollution-free, promoting a greener future.
7.Versatile Installation: The flat design allows for both wall (with wall bracket) and floor (with removable base) installation, saving valuable space.

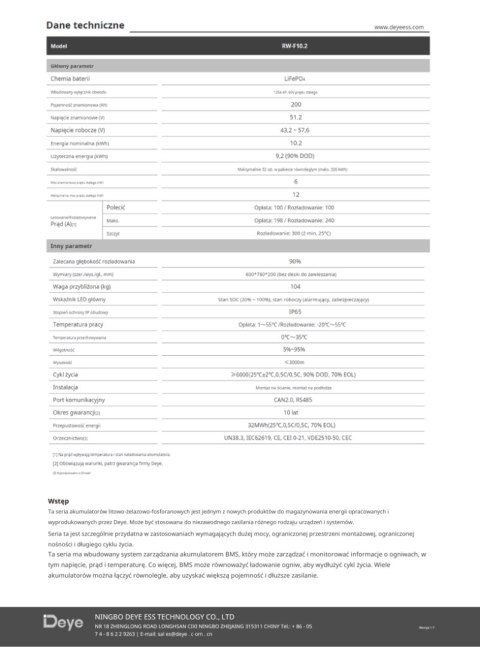

Technical Specifications:
•Battery Chemistry: LiFePO4
•Built-in Circuit Breaker: 125A 4P, 60Vdc
•Nominal Capacity: 200Ah
•Nominal Voltage: 51.2V
•Operating Voltage: 43.2V~57.6V
•Nominal Energy: 10.2kWh
•Usable Energy: 9.2kWh (90% DOD)
