DEYE Magazyn energii HV bateria GB-L-PRO 4.09kWh (wysokonapięciowy)
5237.51
Shipping within | 48 hours |
Shipping price | The Lack Of |
The Availability Of | 36 opak |
Order by phone: +48 720829292

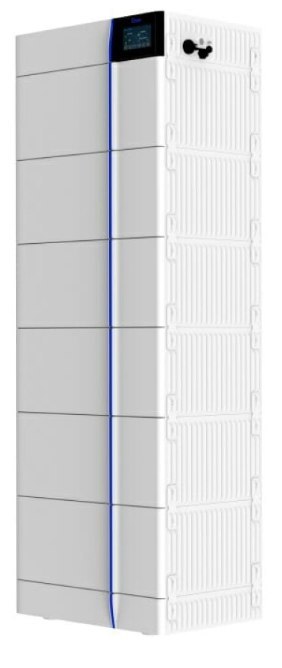

DEYE GB-LM4.0 battery module, 4.09 kWh
The stand-alone battery module from DEYE is designed for use in high-voltage battery systems. This LiFePO4 type module has a capacity of 4.09kWh (40Ah) and an output voltage of 102.4V . It has a high IP65 protection rating and has a corrosion-protected surface, ensuring a long service life without the risk of corrosion. The entire battery system can be assembled from 2 to 6 such modules together with one BMS (Battery Management System) module.

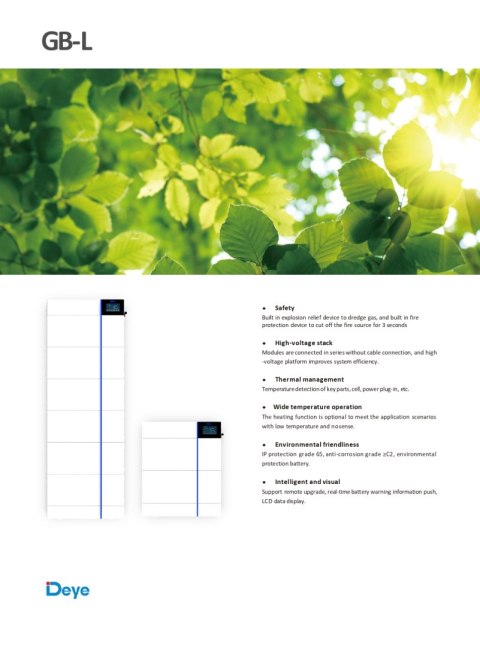

Main advantages
·
Safety
Built-in gas triggering device in the event of an explosion and an integrated fire suppression mechanism that cuts off the fire source for 3 seconds.
·
High voltage tank
Modules are connected in series without cable connection and the high-voltage platform increases system efficiency.
·
Heat management
Temperature detection of key parts, cells, power connectors, etc.
·
Wide temperature range operation
Heating function is optional to accommodate low-temperature and sensorless operating scenarios.
·
Ecological friendliness
IP65 degree of protection, corrosion resistance ?C2, environmentally friendly battery.
·
Intelligent and visual
Supports remote update, instant push notification of battery status, LCD data display.

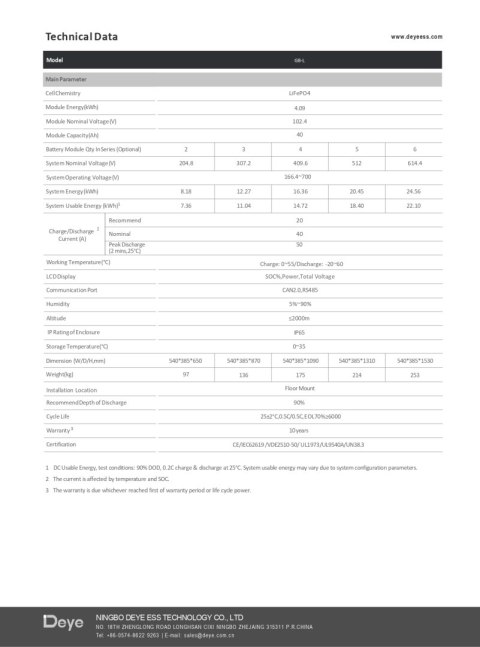

Features:
· Separate battery pack
· Battery type: LiFePO4
· Capacity: 4.09 kWh (40 Ah)
· Output voltage: 102,4 V.
· Protection: High IP65 protection for protection against dust and water.
· Corrosion treatment: Surface treatment for long life and corrosion resistance.

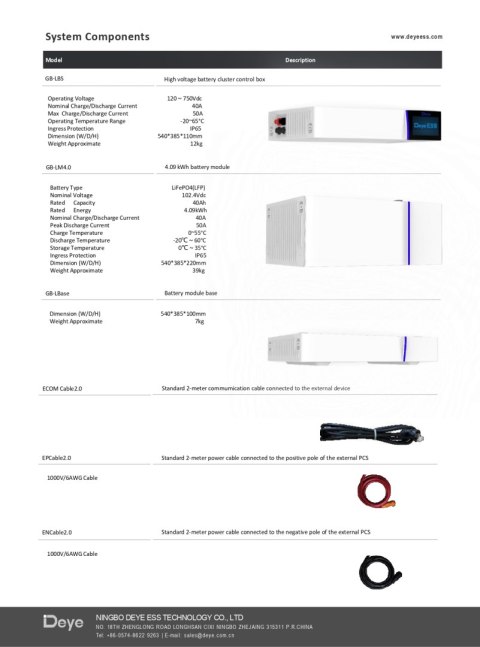

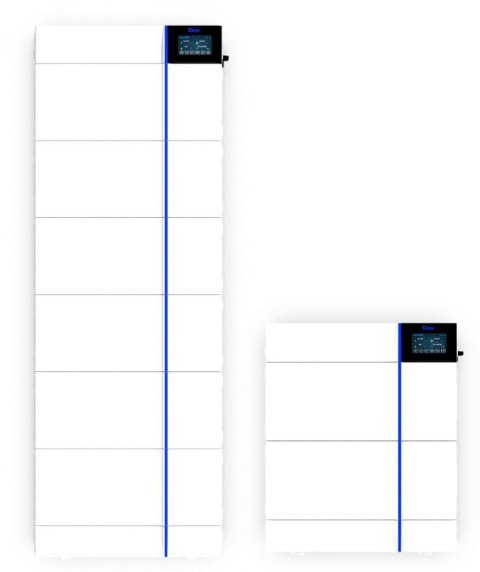

· System configuration: Possibility to build a system of 2 to 6 modules with one BMS (Battery Management System) module.
· Dimensions: 540 x 385 x 220 mm
· Weight: 39 kg
· Flexible use: Suitable for various applications in domestic and commercial power systems.
