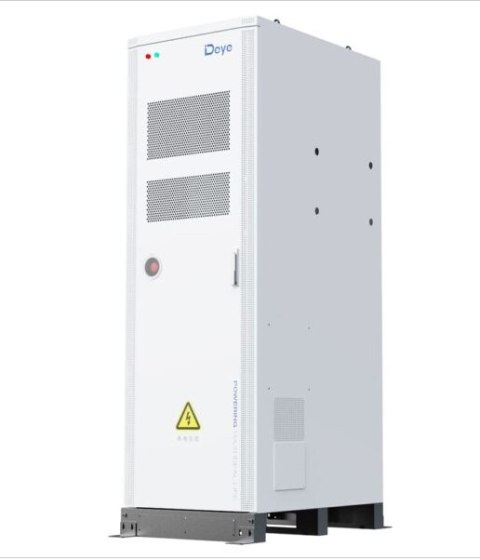

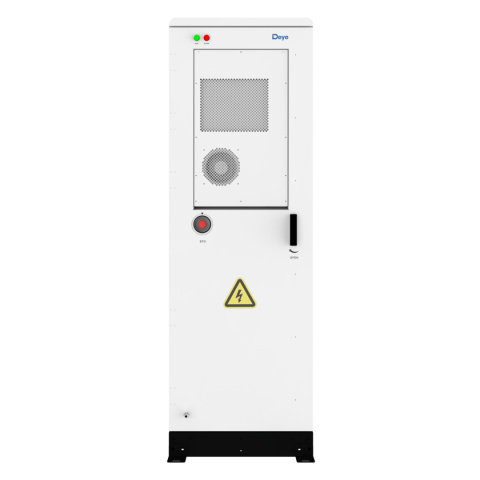

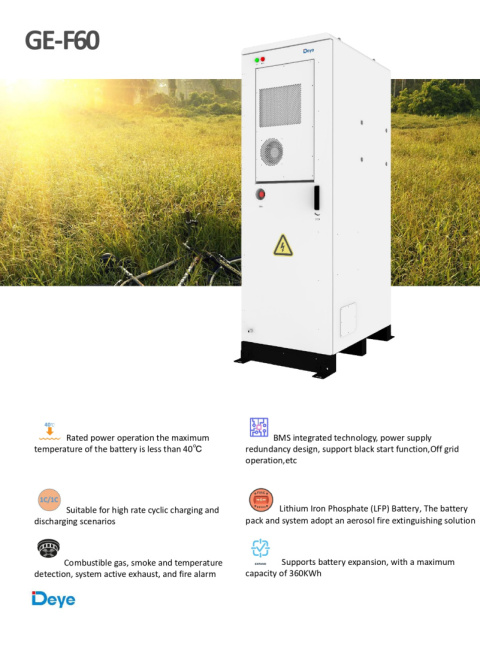

DEYE Magazyn Energii HV bateria GE-F60 614.4V 100Ah 61.44kWh (wysokonapięciowy)

Introducing the Deye GE-F60 (New), a state-of-the-art Energy Storage System (ESS) battery designed for high performance and reliability. This advanced Lithium Iron Phosphate (LiFePO4) battery provides a robust solution for a variety of energy storage applications.

Key Features:

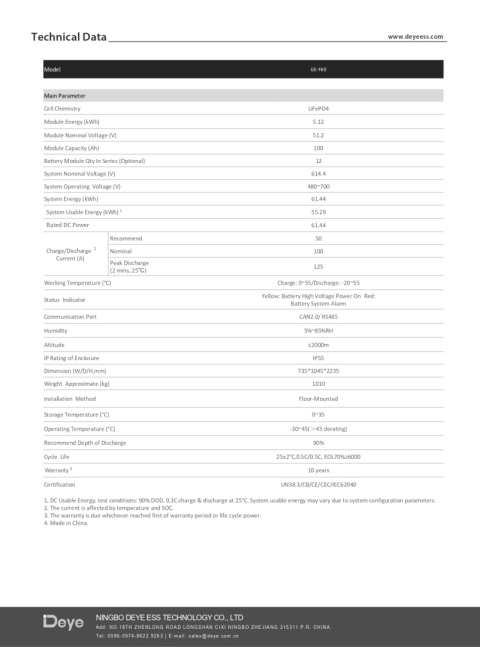

•High system energy of 61.44 kWh and usable energy of 55.29 kWh

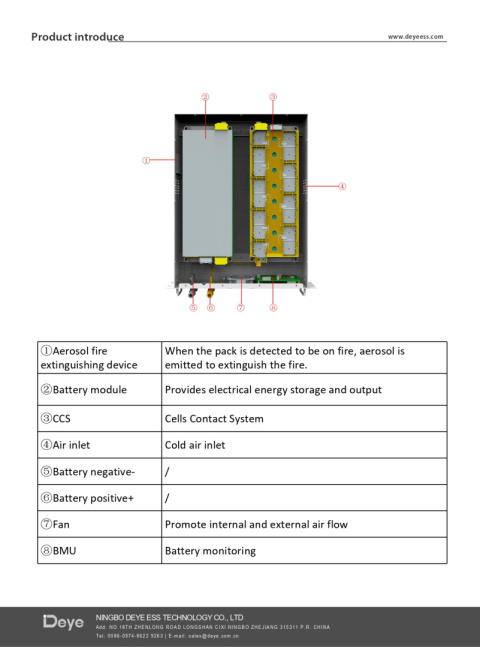

•Modular design with 12 battery modules connected in series, each with a capacity of 5.12 kWh and 100 Ah
•Wide operating voltage range of 480-700 V at a nominal voltage of 614.4 V
•Supports high charge/discharge rates: 50 A recommended, 100 A nominal and 125 A peak discharge current

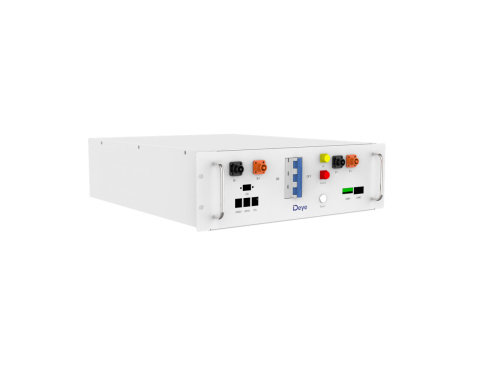

•Integrated BMS for increased efficiency and safety
•Expandable to 360 kWh for greater energy storage needs

Safety and Security:

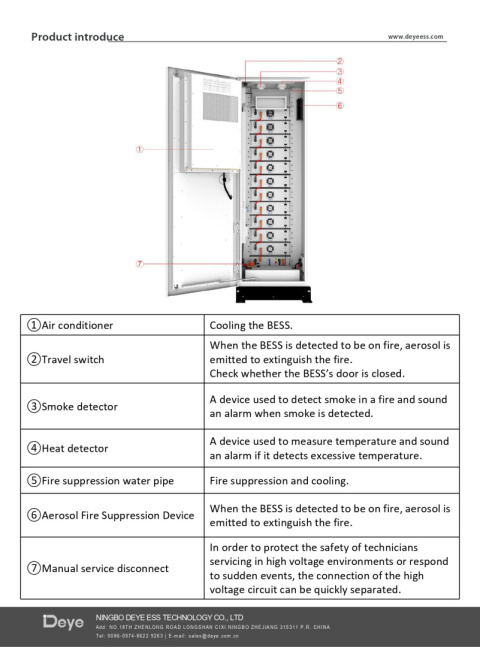

•Advanced aerosol fire suppression system for enhanced safety

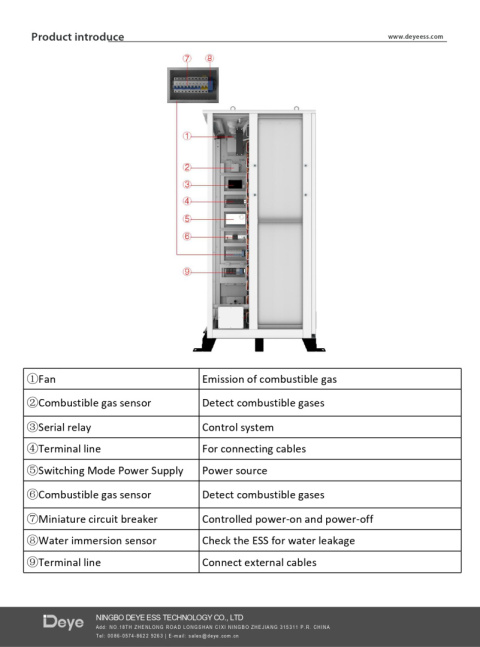

•Flammable gas, smoke and temperature detection with active exhaust and fire alarm
•IP55 enclosure for ingress protection dust and water
•CE, IEC62619, IEC62040 and UN38.3 certifications for quality and safety

Performance and Durability:
•Wide operating temperature range: 0-55°C for charging and -20-55°C for discharging
•Long cycle life: ≥6000 cycles at 90% DOD, 0.5C charge/discharge and 25±2°C
•10-year warranty for peace of mind
•Suitable for high-rate cycling charge and discharge scenarios

Applications and Scalability:
•Ideal for various applications including off-grid operation, power redundancy and black start functionality

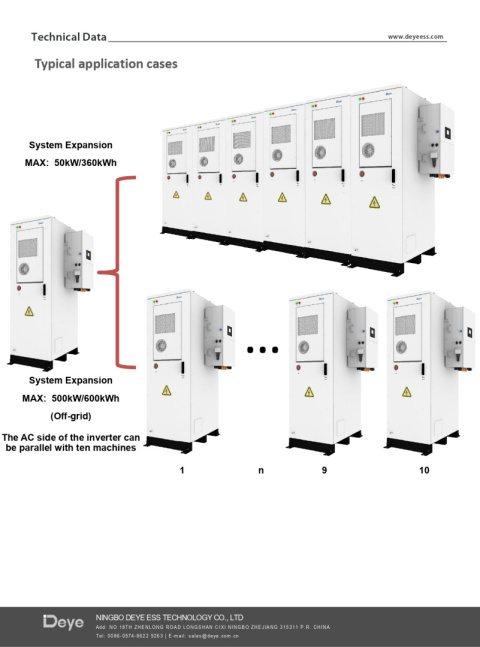

•Expandable to 50kW/360kWh for single systems and 500kW/600kWh for parallel systems

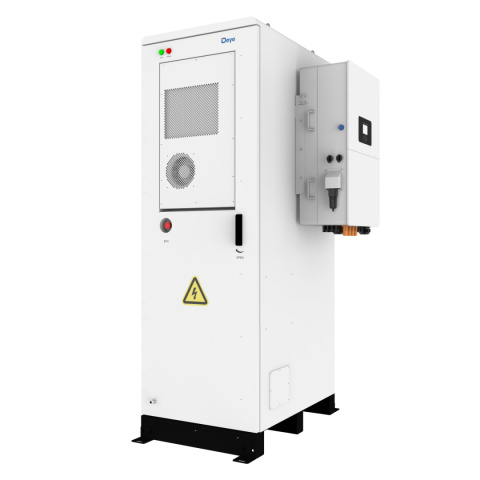

•The AC side of the inverter can be connected in parallel with up to ten machines for larger installations
