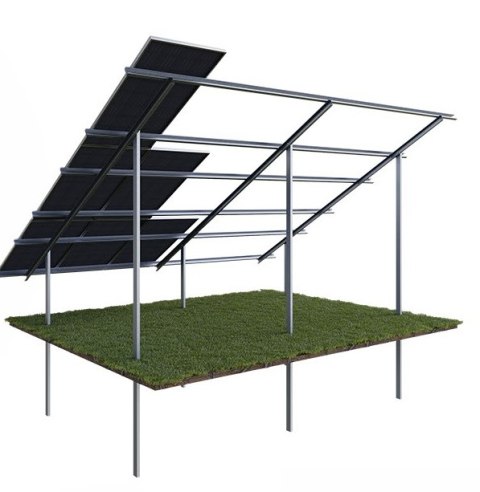

N3V two-support ground structure

Provides a self-contained ground mounting structure for an array of photovoltaic panels arranged vertically (3 units one above the other), with a slope of about 25/30/35°.

The two-support structure is placed on the ground with a minimum of 4 legs, driven into the ground to a depth of about 150 cm. The depth of killing the legs depends on the type of soil.

It is possible to select a structure for the installation of a minimum of 6 panels and more.

 Each structure is selected individually depending:

Number of photovoltaic panels

Size of photovoltaic panels

Orientation ( vertical / horizontal )

Please send an inquiry within 24 hours we will try to answer and give you a quote.

Price depends on the number of modules and their size

Price p.w. is the price for one unit of module / panel.
